| Video Output | Full HD 1080p/60 frames per second |
| Image sensor | 1920(H) x 1080(V) 16:9 format, 2.5 μm x 2.5 μm pixel size |
| I/O Ports | HDMI video output, 5P MiniDin Power input, 8P MiniDin for communication |
| Onboard Control | Zoom, Iris, Auto Focus on/off, White Balance |
| Remote Control via Console (optional) | Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Display Text, Crosshairs overlay, Image Rotate, Image Freeze, Memory Save/Recall (2 pcs) Video Output Frame Rate. 2-pedal footswitch. |
| Remote Control via Software (optional) | Auto/Manual Exposure, Frame Stacking, Contrast, Brightness, Gamma, Sharpness, High Dynamic Range, Auto/Manual White Balance, Flip H, Flip V. Foot-switch. |
| Lens | Megapixel motorised 30:1 zoom lens with autofocus, iris control and pre-calibrated optics. |
| Illumination F30s (optional) | LED RingLight, Single-Spot or Double-Spot LED matrix light with gooseneck, LED Transmitted Backlight |
| Mount | UNC 1/4″–20 |
| Storage Environment | -20° – +60°C, 20 – 95% RH, non-condensing |
| Operating Environment | -5 ° – +45°C, 20 – 95% RH, non-condensing |
| Size, Weight F35s | D86.5 x L137mm exclusive cable. 1.1 kg inclusive cable |

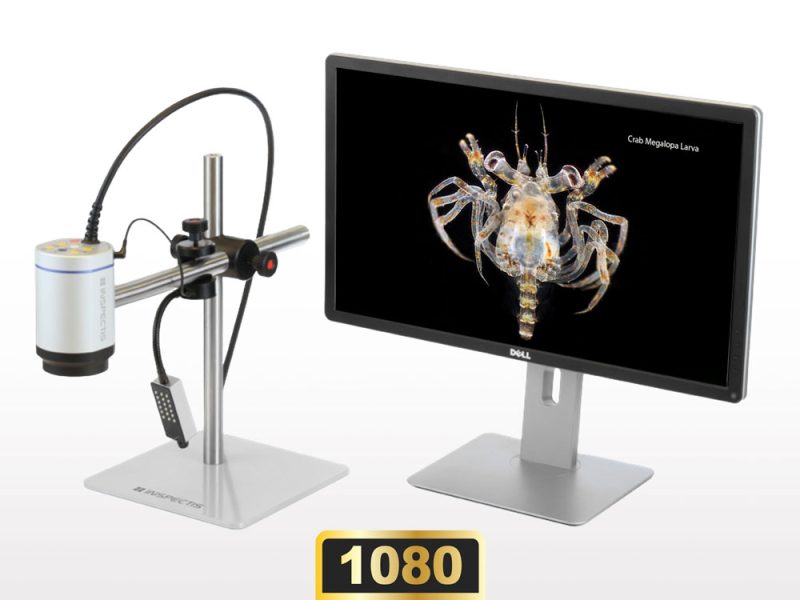

F30s Modular Digital Microscope with Full HD 60fps Performance
Species: All Species
Product Code HD-013
Condition: New
Shipping: Local
Email for more information. info@vet-tech.co.uk
FHD 60 fps Performance with 30x Motorised Zoom and On-board Controls
Superior 30:1 zoom optics with Auto-Focus
Modular Digital Microscope with 30:1 motorised optical zoom, 60 frames per second video streaming, and easy-to-access on-board lens & camera controls. Standard UNC 1/4-20″ mount for assembly on most standard stands.
Endlessly Versatile
Modular design of the F30s in industrial grade aluminium housing and excellent cable management allows easy configuration of your optical inspection system with a wide range of stands, mounts, illuminations and control consoles according to your needs.
Designed for Ergonomic Use
Inspectis F30s provides relief to eyes, neck and shoulders through the unique ergonomic design, built-in laser pointer and 228 mm free working distance. By allowing operators to sit comfortably in a good working position, their inspection tasks can be carried out more efficiently.
Specifications
Optics
| Lens System | 1:30 Motorised Zoom Lens with Auto Focus and Iris Control |
| Working Distance Range | 228 – 187 mm (from lens to object at maximum zoom factor) |
| Magnification Range | ~ 1.9x – 56x on 24” monitor (~ 170x with +10 macro lens) |
| Field of View Range | ~ 270 to 9.3 mm (~ 3.1 x 1.7mm with +10 lens ) |
